SPECIFICATIONS

Axle Brand: FUWA 3*13Ton Axle

Brand Name: Chengda

Curb mass: 14500kg

Mass of side lifter: 7250kg

Material: Steel

Max Payload: 37 ton

Max. lifting capacity: 37000kg

Max. working range: 4000mm

Maximum gross mass: 40000kg

Outline dimension of semi-trailer(L*W*H): 14100*2500*4000mm

Outline dimension of sidelifter(L*W*H): 10200*2500*2490mm

Place of Origin: SHN

Product name: 20ft 40ft 45ft container side lifter

Size: 14100*2500*4000mm

Type: Semi-Trailer

Use: Truck Trailer

Wheel base: 8000+1350+1350mm

Chinese Top Brand Side Lifter 20ft 40ft 45ft Container Side Lifter Crane Skeleton Semi Trailer with Side Lifter

Product Description

Chinese Top Brand Side Lifter 20ft 40ft 45ft Container Side Lifter Crane Skeleton Semi Trailer with Side Lifter

Specification

Item	Parameters
Max. lifting capacity	37000kg
Max. working range	4000mm
Max. stabilizer outreach	3200mm
Curb mass	14500kg
Mass of sidelifter	7250kg
Maximum gross mass	40000kg
Outline dimension of semi-trailer(L×W×H)	14100×2500×4000mm
Outline dimension of sidelifter(L×W×H)	1020×2500×2490mm
Wheel base	8000+1350+1350mm
Track(front axle/rear axle)	1820/1820/1820mm
Front overhang / Rear overhang	-/2370mm
Approach angle/Departure angle	-/13°
Function	Transport and lift 220ft and 140ft container
Axle Brand	FUWA 3×13Ton Axle
Tires	1200R22.5 12 pcs
Power station	Kubota V2403-M-DI-E3B-CSL-1 Japan brand
Loading capacity	40tons
Landing gear	FUWA brand 28tons double speeds
Suspension system	Mechanical Leaf Spring Suspension
Leaf spring	90(W)mm13(Thick)mm10 Layer
The material of Main beam	Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm.
Brake system	Dual Line braking system
Brake air chamber	Six double chamber
Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core standard Cable.

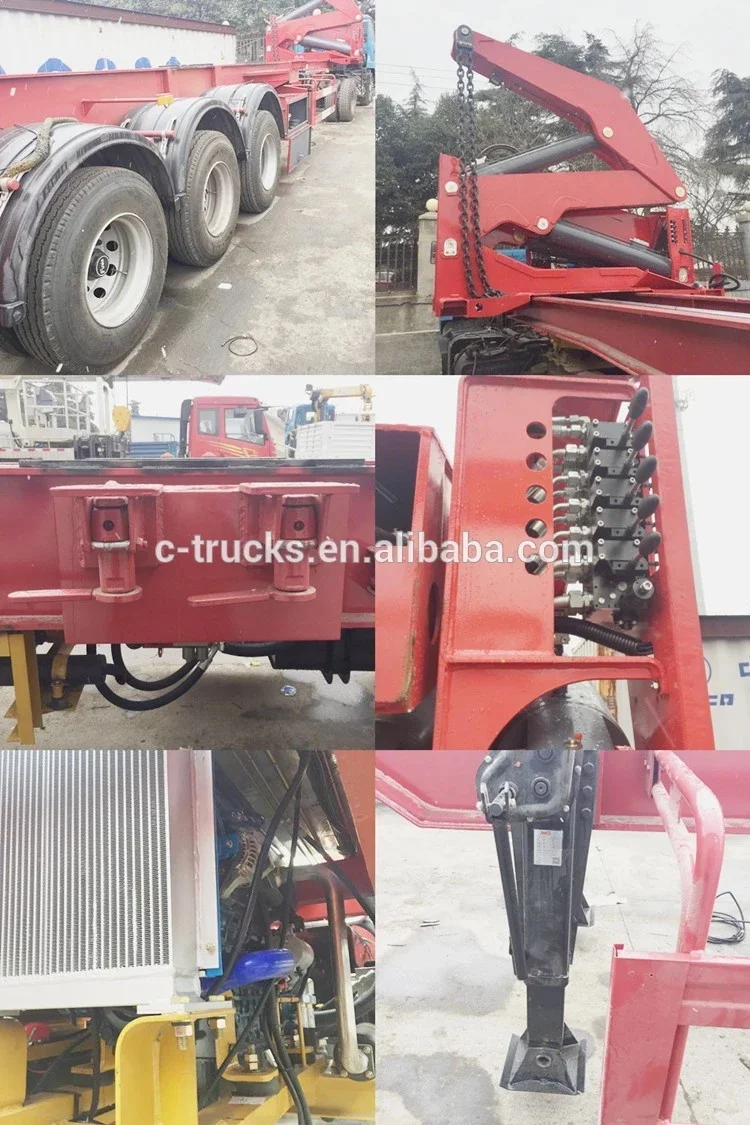

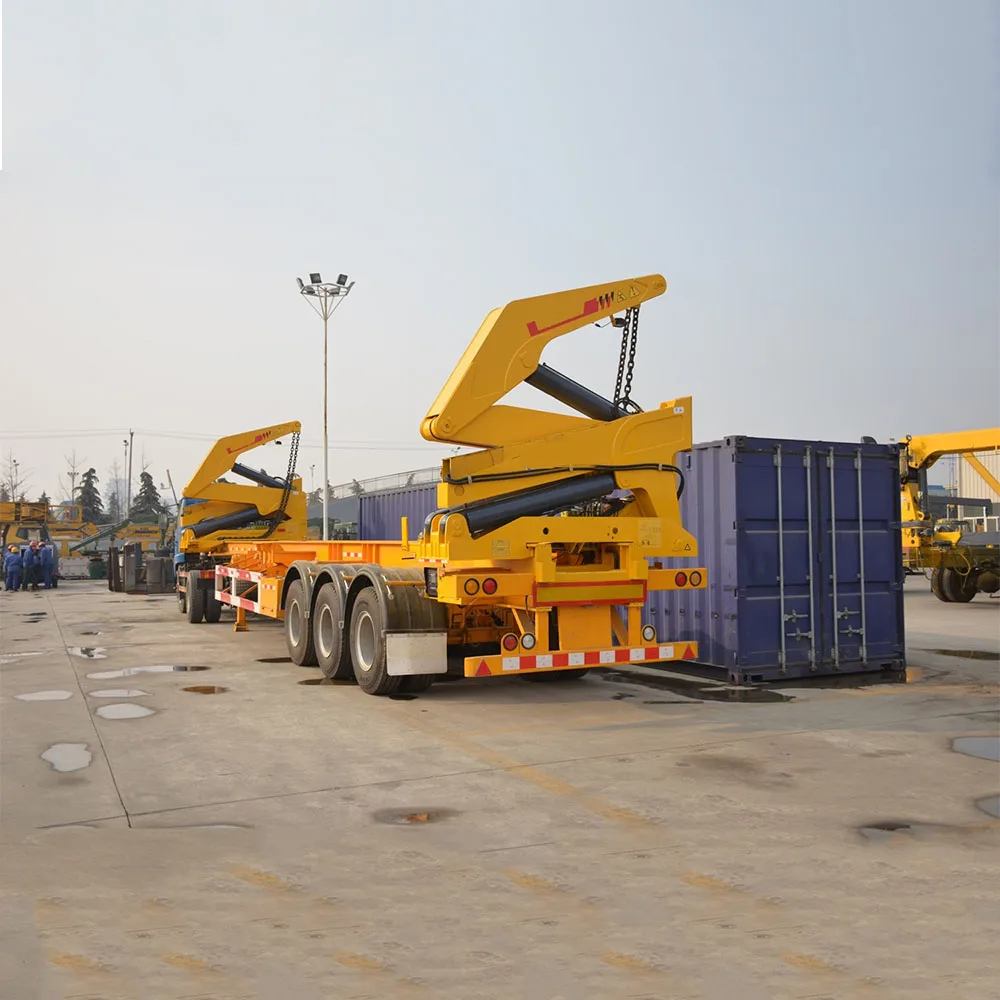

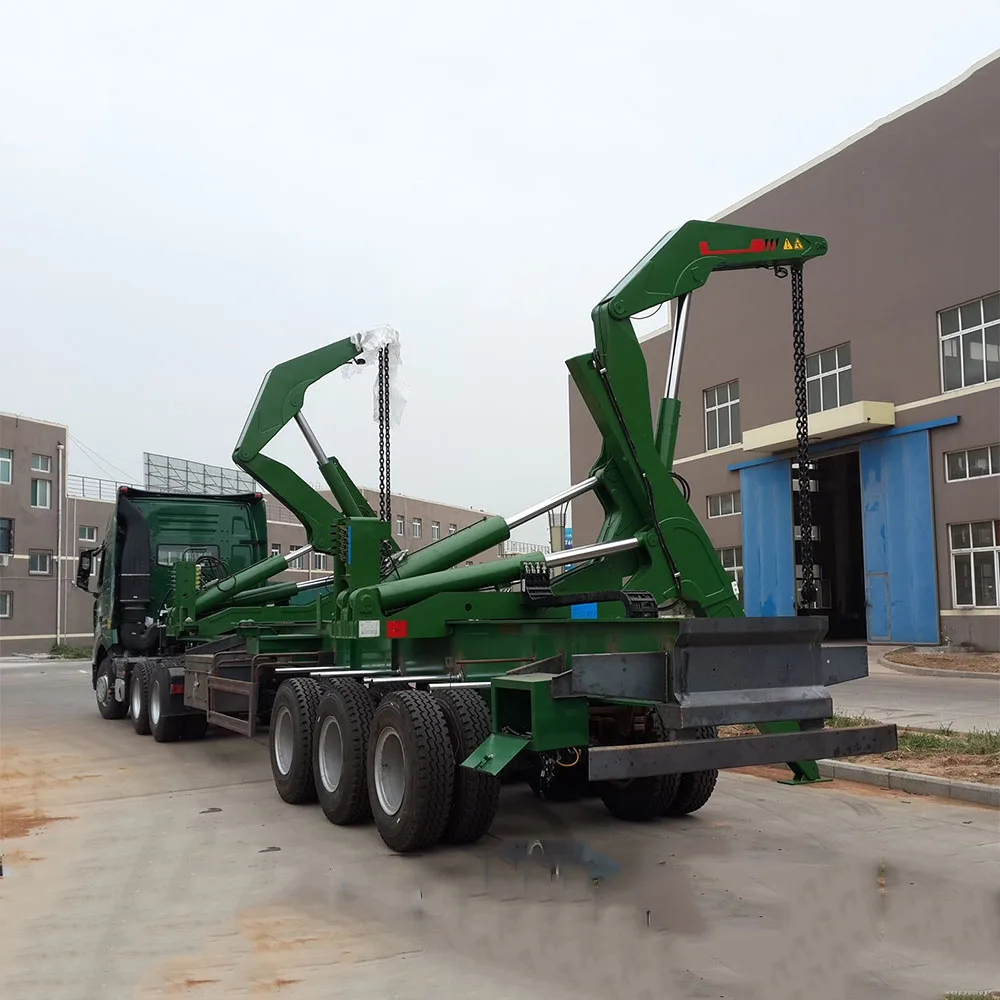

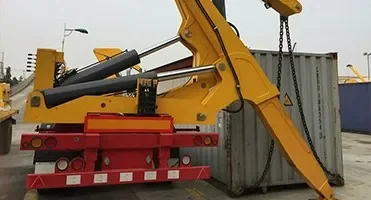

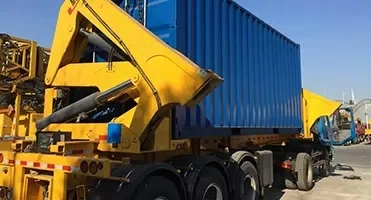

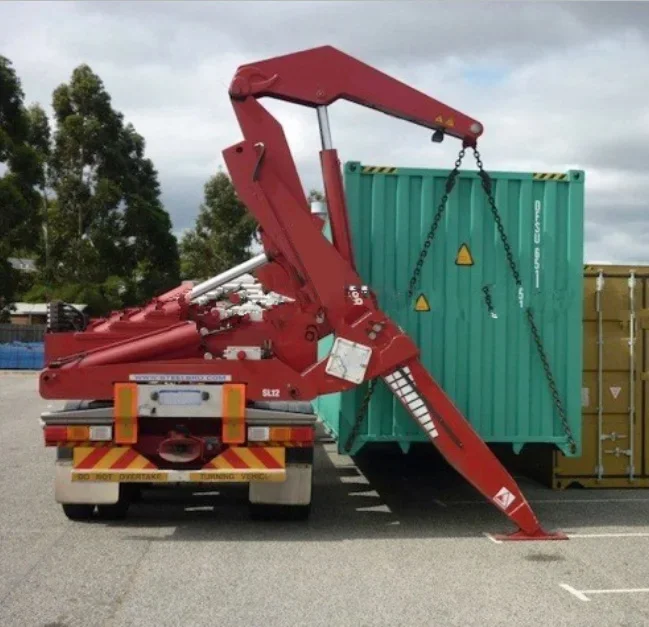

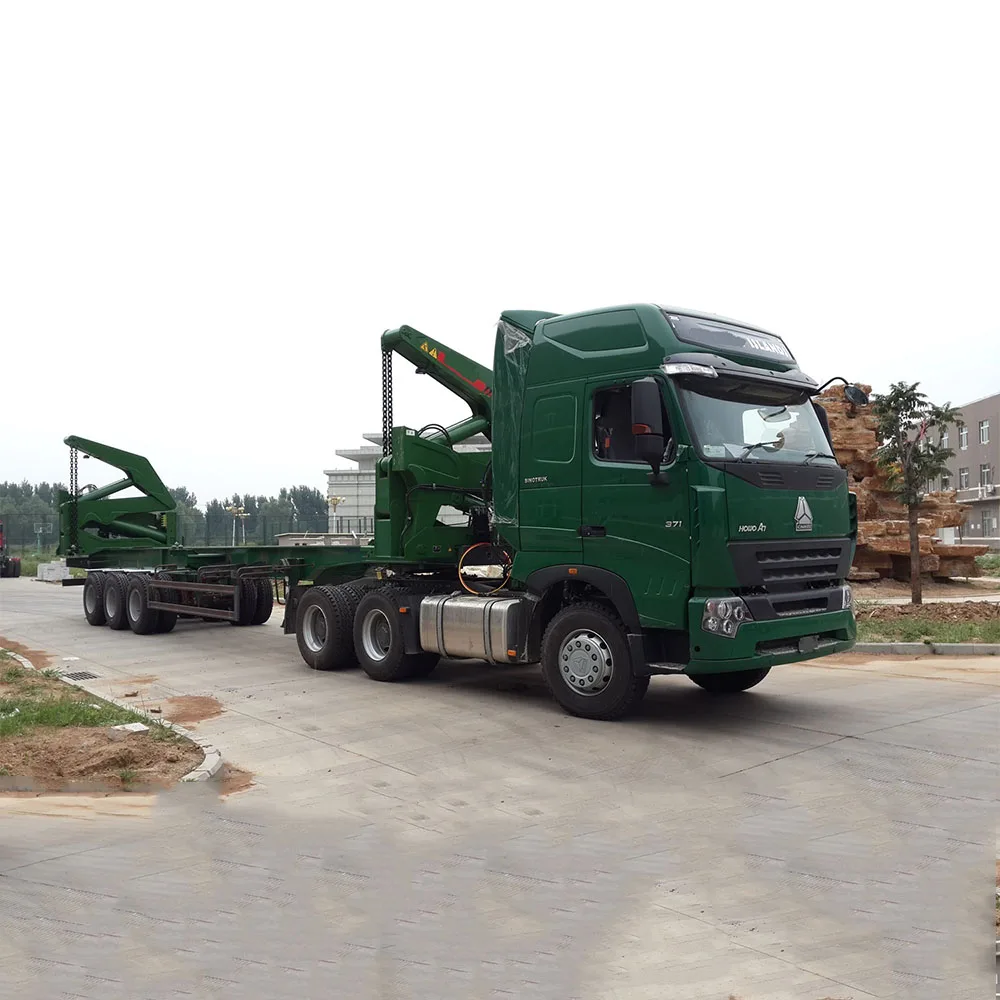

Products Dispaly

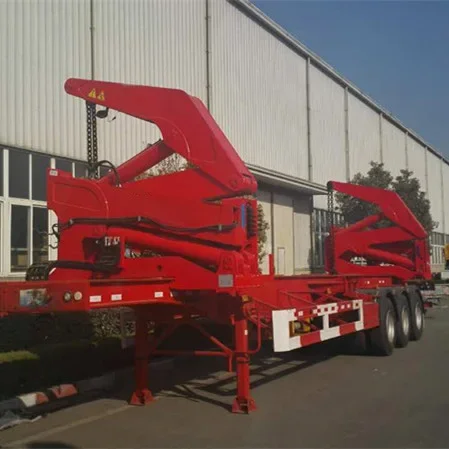

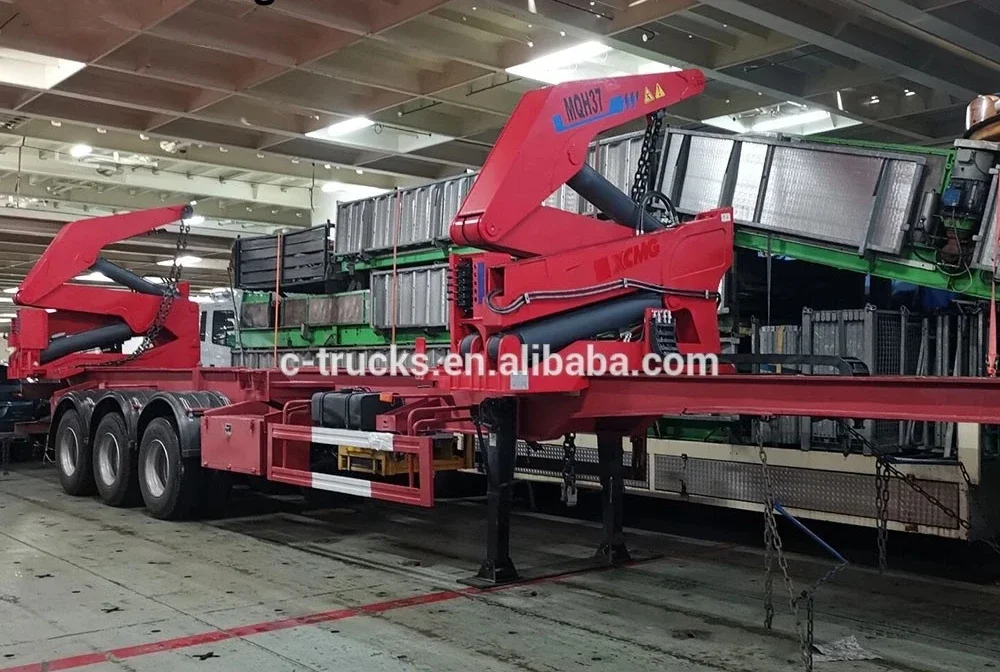

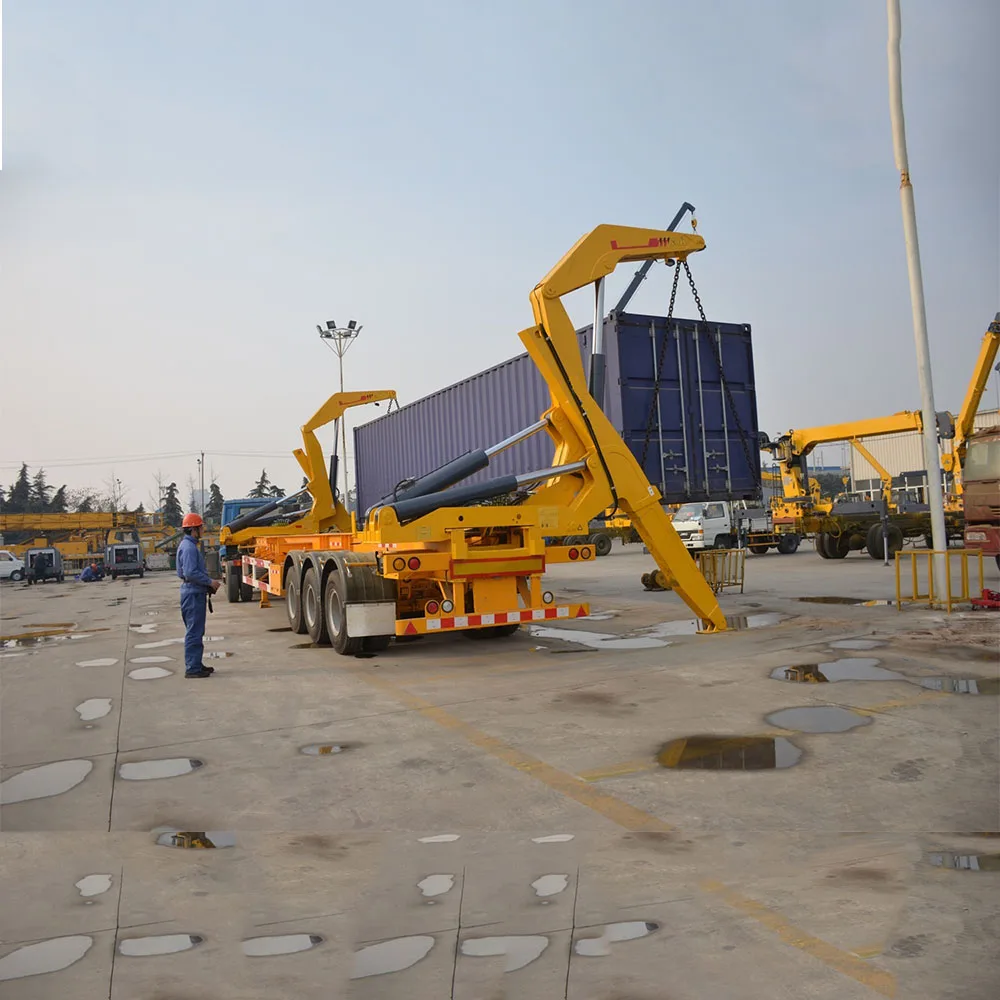

Chinese Top Brand Side Lifter 20ft 40ft 45ft Container Side Lifter Crane Skeleton Semi Trailer with Side Lifter

* container side loaders for handling 40-foot containers and 20-foot containers.
* lifting capacity: maximum. The lifting capacity is 40 tons to meet your transportation requirements.

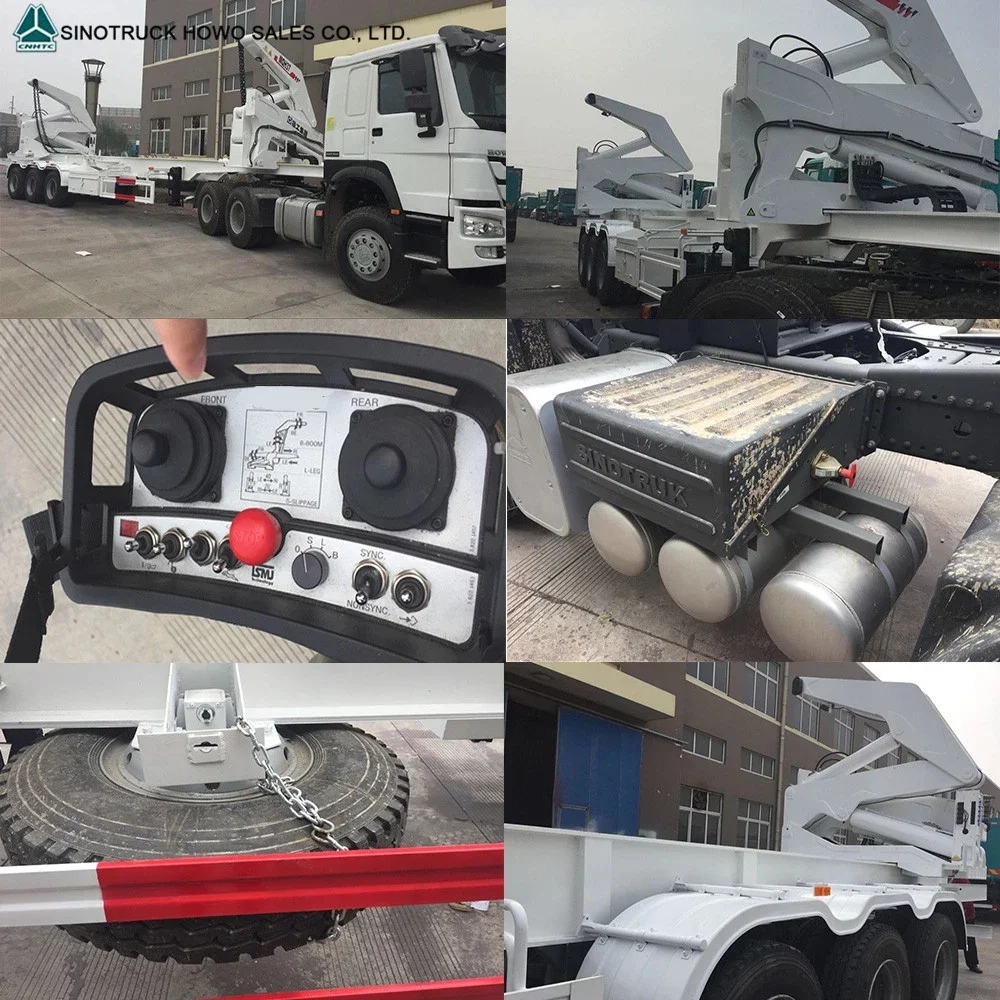

* the container side loader adopts wireless remote control technology, which only takes 10 minutes to load.
* power source, container side loader, equipped with power take-off unit (PTO) or diesel power unit (APU), while the crane is
usually powered by a trailer-mounted diesel engine, the crane is sometimes powered by a PTO at the truck head.
