SPECIFICATIONS

After-sales Service Provided: Video Technical Support,Overseas Call Centers,Field installation, commissioning and training,Online support

Air Conditioner: Manual

Brand Name: HOWO

Capacity (Load): 31 - 40T

Cargo Tank Dimension: 6.5*2.3*16

Cargo Tank length: 6.2-8m

Condition: New

Cylinders: 6

Dimensions (L x W x H) (mm): 8.5*2.5*3

Drive Wheel: 6X4

Driver's Seat: Air suspension

Emission Standard: Euro 2

Engine Brand: CNHTC

Engine Capacity: > 8L

Engine power: 371hp; euro-2

Forward Shift Number: 10

Fuel Tank Capacity: 300-400L

Fuel Type: Diesel

Gross Vehicle Weight: ≥30T

Horsepower: 351 - 450hp

Market Segement: Engineering transportation

Maximum Torque(Nm): 1500-2000Nm

Passengers: 2

Place of Origin: China

Product name: truck

Rear Camera: None

Reverse Shift Number: 2

Segement: Medium-sized truck

Steering: Left

Tire Number: 10

Touch Screen: None

Transmission Type: Manual

brand: SINOTRUCK HOWO

cargo box: 19.32cbm

condition: new

Company Video

Product Description

Specification

* Driving type: 6x4
* Wheelbase: 3800mm
* Cab : HW76 / Single Berth With Air-condition
* Engine:WD615.47 371HP EuroⅡ
* Transmission: HW19710 PTO
* Rear axles: HC16 Ratio：73
* Front axles: VGD95 drum-type
* Steering: Z--F8118
* Tires: 12.00R20 Steel wire tyre
* Color: white
* Dump body size: 5.6*2.3*1.5m (19.32Cu.m)
* Steel thickness of dumper(mm): floor 8, side 6

Lifting type: T model, middle lifting system

Howo dump truck basic	Made	SINOTRUK
		Series	HOWO
		Howo dump Model	ZZ3257N3647A
		Howo dump Driving Type	6x4

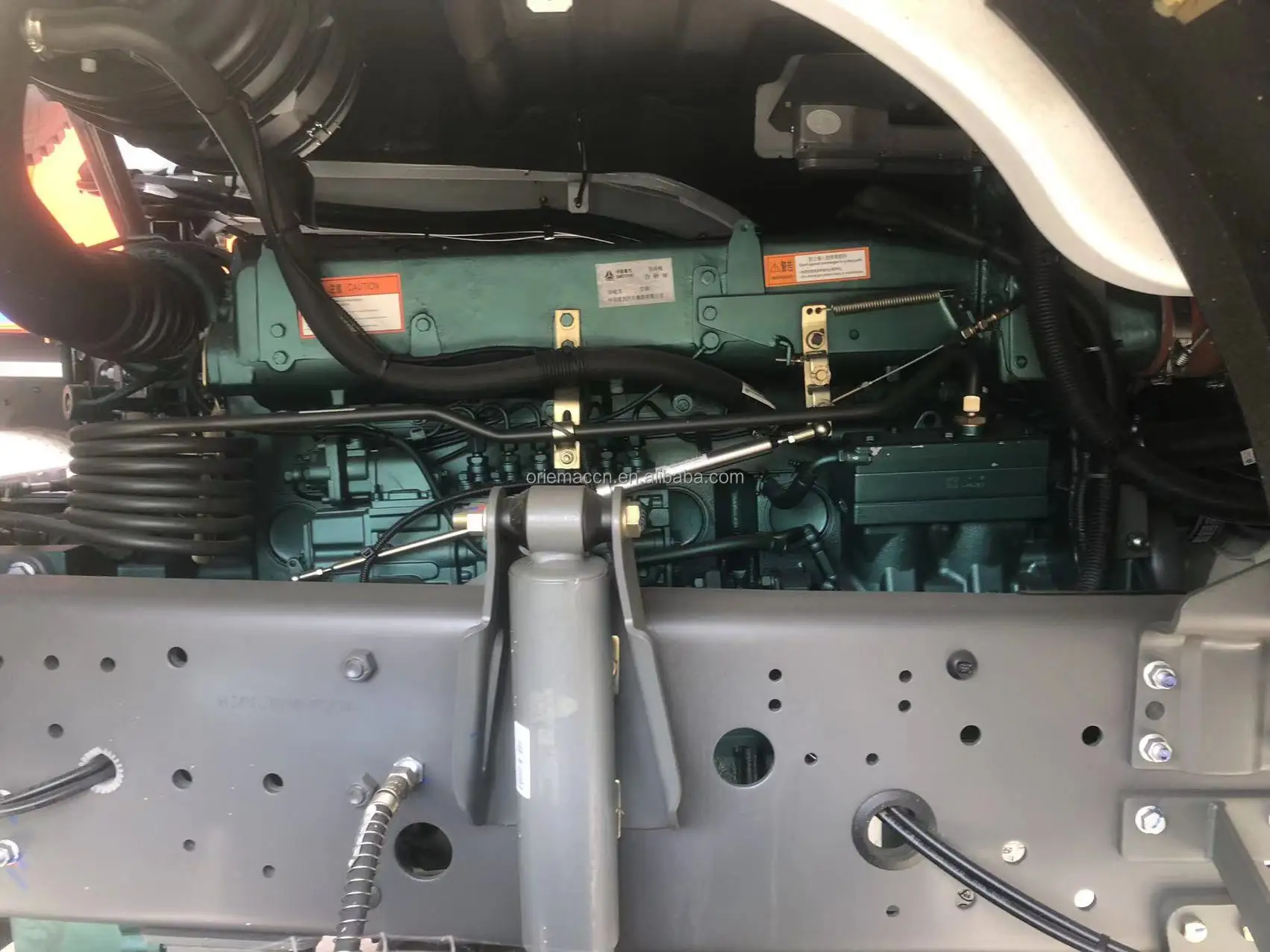

Howo dump Engine	Howo dump Engine model	WD615.47
		Howo dump Engine Type	6-cylinder in-line with water cooling, turbo-charging and intercooling,4-stroke direct injection diesel engine
		Howo dump Maximum output	371 hp (247 Kw) at 2200 rpm
		Howo dump Displacement	9.726 L
		Bore	126 mm
		Stroke	130 mm
		Compression ratio	29.8 hp/l
		Specific fuel consumption	195 g/kWh
Howo dumpTransmission	Model	HW15710(Fuller technology)
		speeds	10 speeds
Howo dump Axle	Front Axle	9T
		Rear Axle	16T
Howo dump Fuel tank	Aluminium fuel tank	300 L capacity with locking fuel cap
Howo dump Steering	Model	Z--F power steering, modol Z--F8098, hydraulic steering
Howo dump Tyre	Radial Tyre	12.00R20

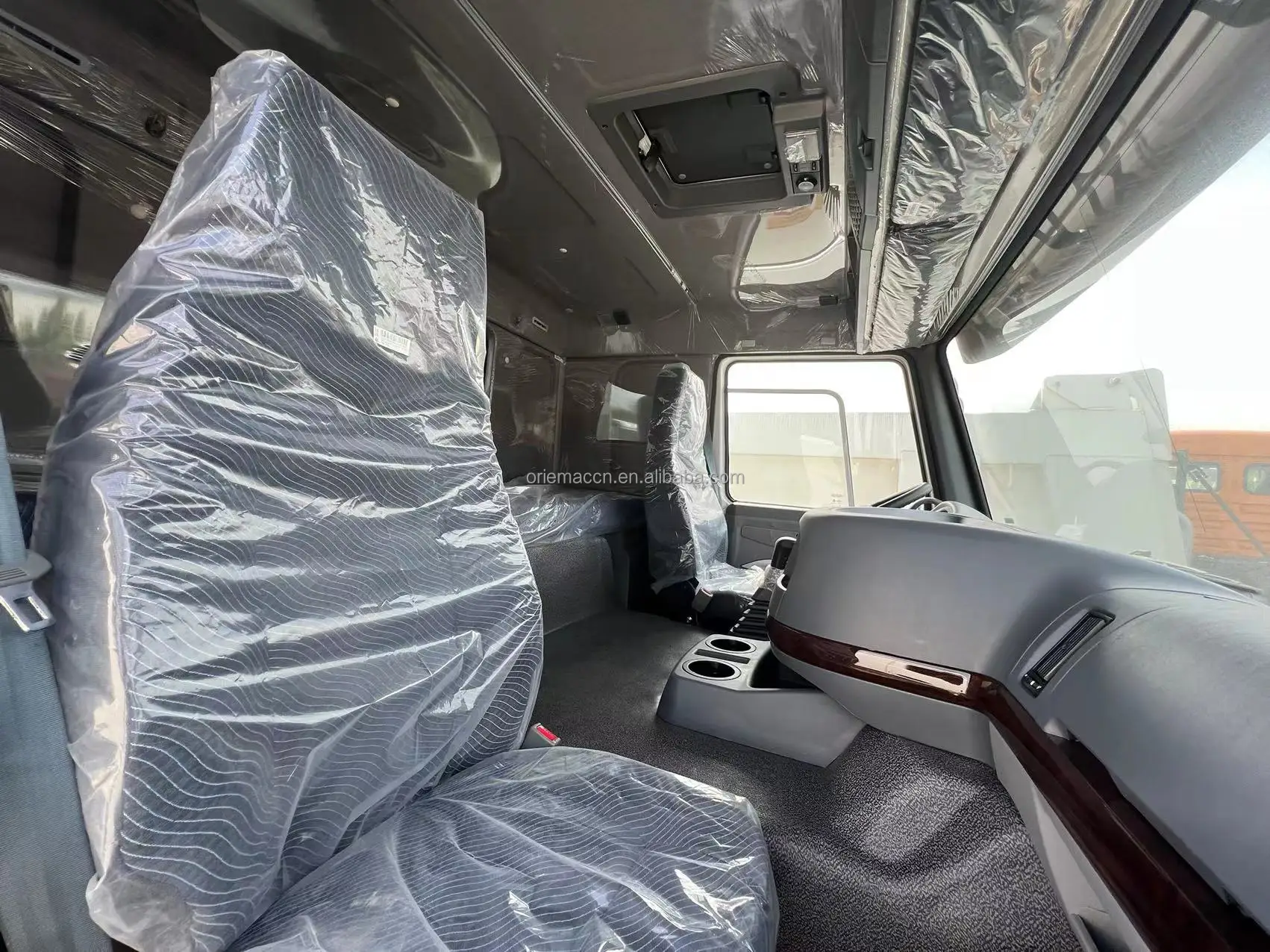

Howo dump Driver's Cab	Flat roof cab with bed	all steal forward control,2-arm windscreen wiper system with three speed,laminated windscreen, damped adjustable driver's seat, with heating and ventilating system, adjustable steering wheel,air conditioner
Howo dump Dimensions mm	Wheel base	3600+1350
		Overall dimmensions	8145*2496*3386
		Dimension of the rear dump body	5600*2300*1500mm
Howo dump Performance	Maximum driving speed (km/h)	75
		Maximum gradeability (%)	40
		Minimum ground clearance (mm)	314
		Minimum turning circle (m)	20
		Fuel consumption (l/100 km)	28
